Solar panels for swimming pools

The solar panel of Cullwater permit to economically warm the water of the swimming pool and to increase the period of utilization and the comfort. The solar collectors can be easily installed also in private and public pools and they do not need particular operations of maintenance, except their emptying during winter.

The materials with which they are realized guarantee an optimal resistance from the corrosion and the necessary stiffness for a good duration. Thanks to their good esthetical impact, the solar panels for swimming pool adapt themselves to every situation (gardens, terraces, roofs and canopies).

Every battery of panels includes all the elements necessary for the assembly, the connectors to link to the circuit of the pool, using the capacity of the recirculation pump. In order to permit an adequate thermal output, the surface of the systems of the solar panels has to correspond at least the 55% of the pool’s one.
A different way of installation is possible, as for example the realization of an autonomous system regulated by thermostats.

The panels are 31 cm wide.
The header collectors are 35.3 cm wide.

ModelNominal lengthCapturing surface
PSG 200020,62
PSG 300030,93
PSG 400041,24
PSG 600061,86
PSG 900092,79
PSG 12000123,72

Pool water heating

Solar panels are used for heating swimming pool water.


Installation diagram - pool water heating

schema pannelli solari

Shower heating

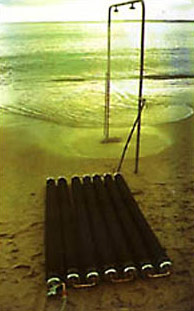

In addition to the heating of the pool water, Cullwater solar panels can also be used to produce hot water for private showers or at beach resorts.

Installation diagram - shower heating

schema pannelli docce


AC to connect a panel with the other
AB for the extremities of the battery
Every panel needs a package of connection “AC”
Every battery needs a package of connection “AB”

TDQE Differential thermostats (minimum and maximum) with probe holders and electric control panel with motor protector for dedicated recirculation pump
